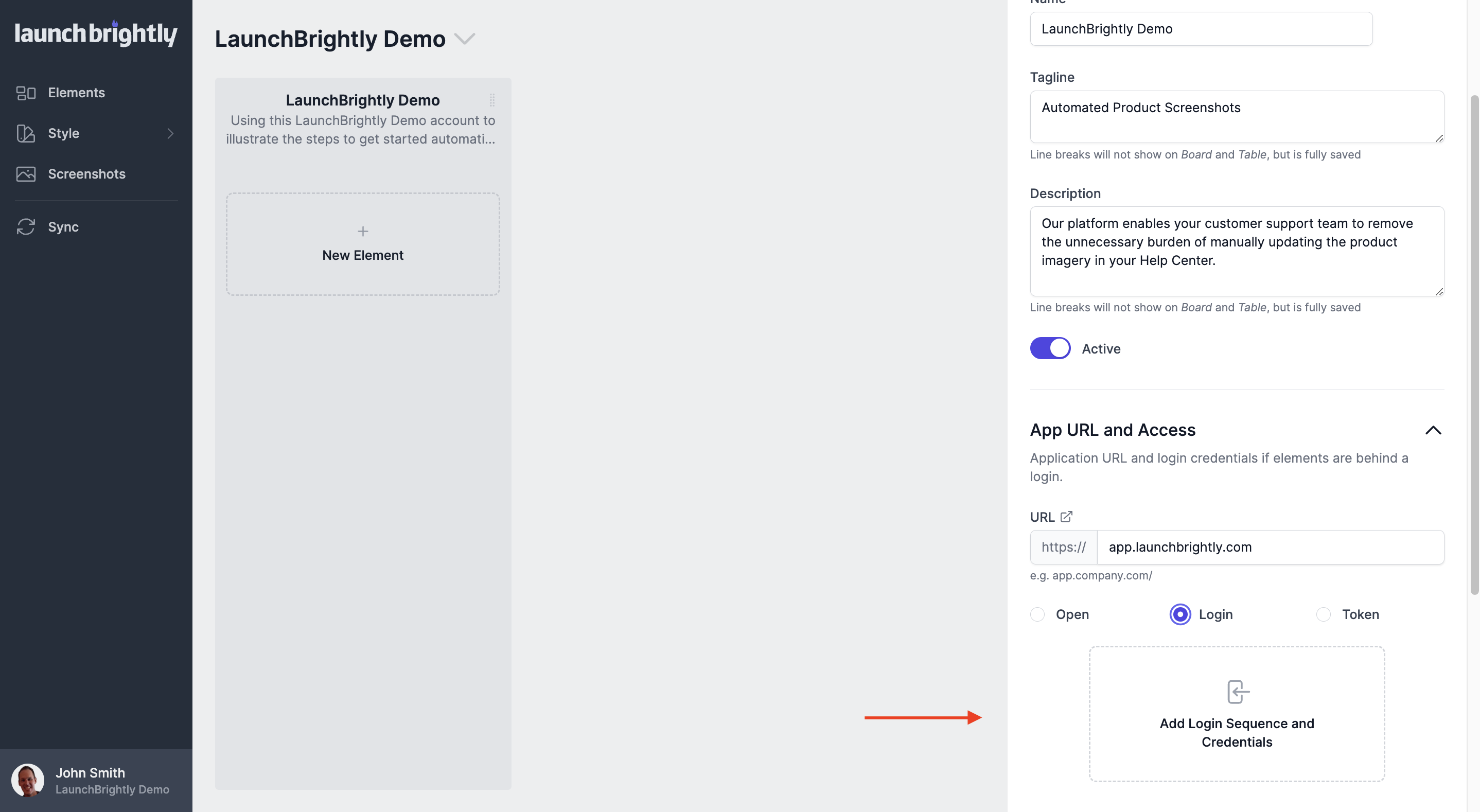

To provide the automated screenshot platform with visibility into your demo account using a login and password select the Login radio button and enter the login URL for your demo account.

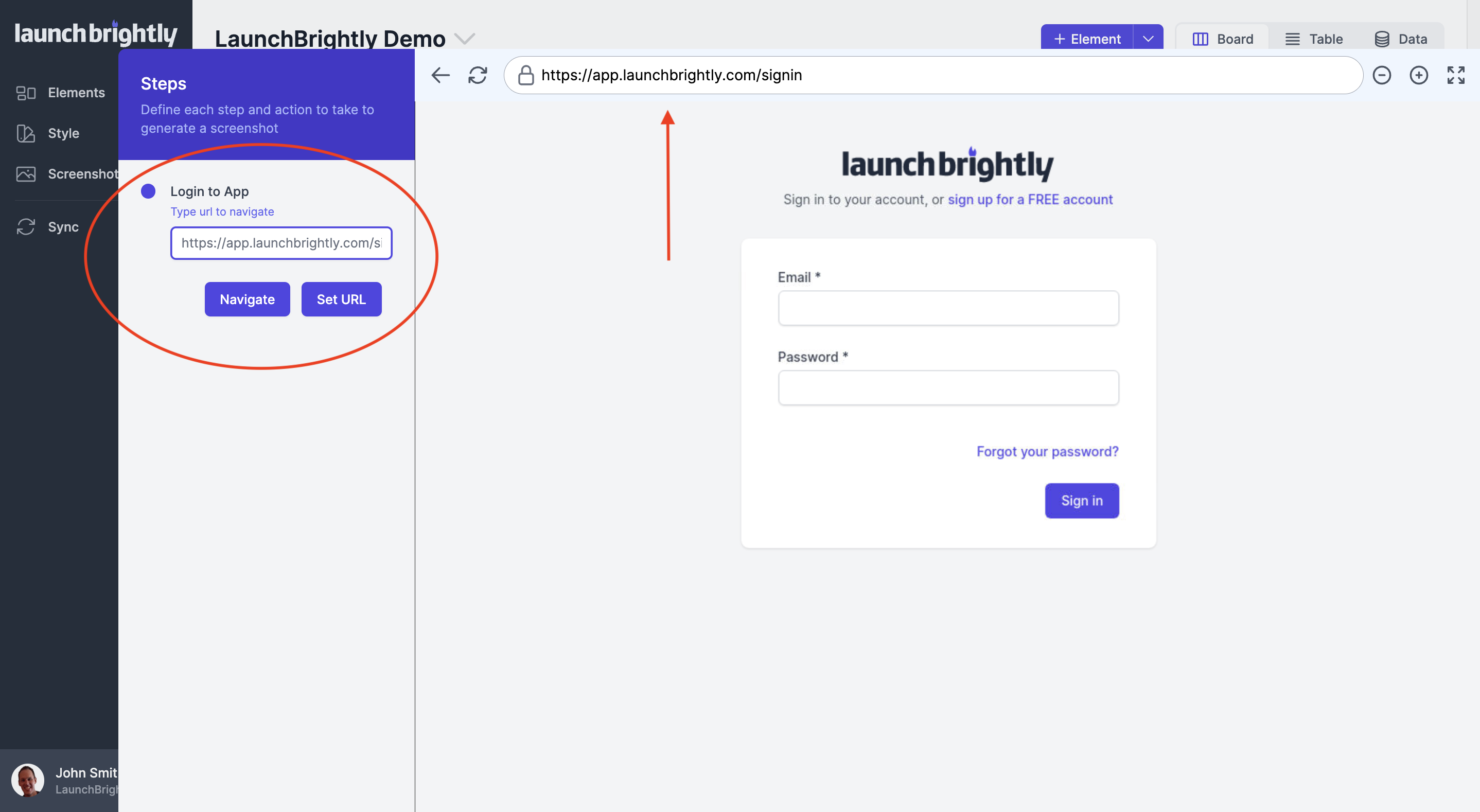

Click on the Add Login Sequence and Credentials box to display a Cloud Browser of your web application URL within the LaunchBrightly console.
The screenshot automation platform will automatically navigate to the Login URL for your web application in the Cloud Browser, however you can also enter the Login URL directly into the replica browser to display your login page should you prefer.
Note: the Cloud Browser displayed within the LaunchBrightly console is a fully functioning browser that allows you to navigate the page, or update the URL, as you would any normal browser.
Click Set URL to make this the default page for the automated screenshot platform to navigate to when automatically logging into your demo account to capture automated product screenshots.

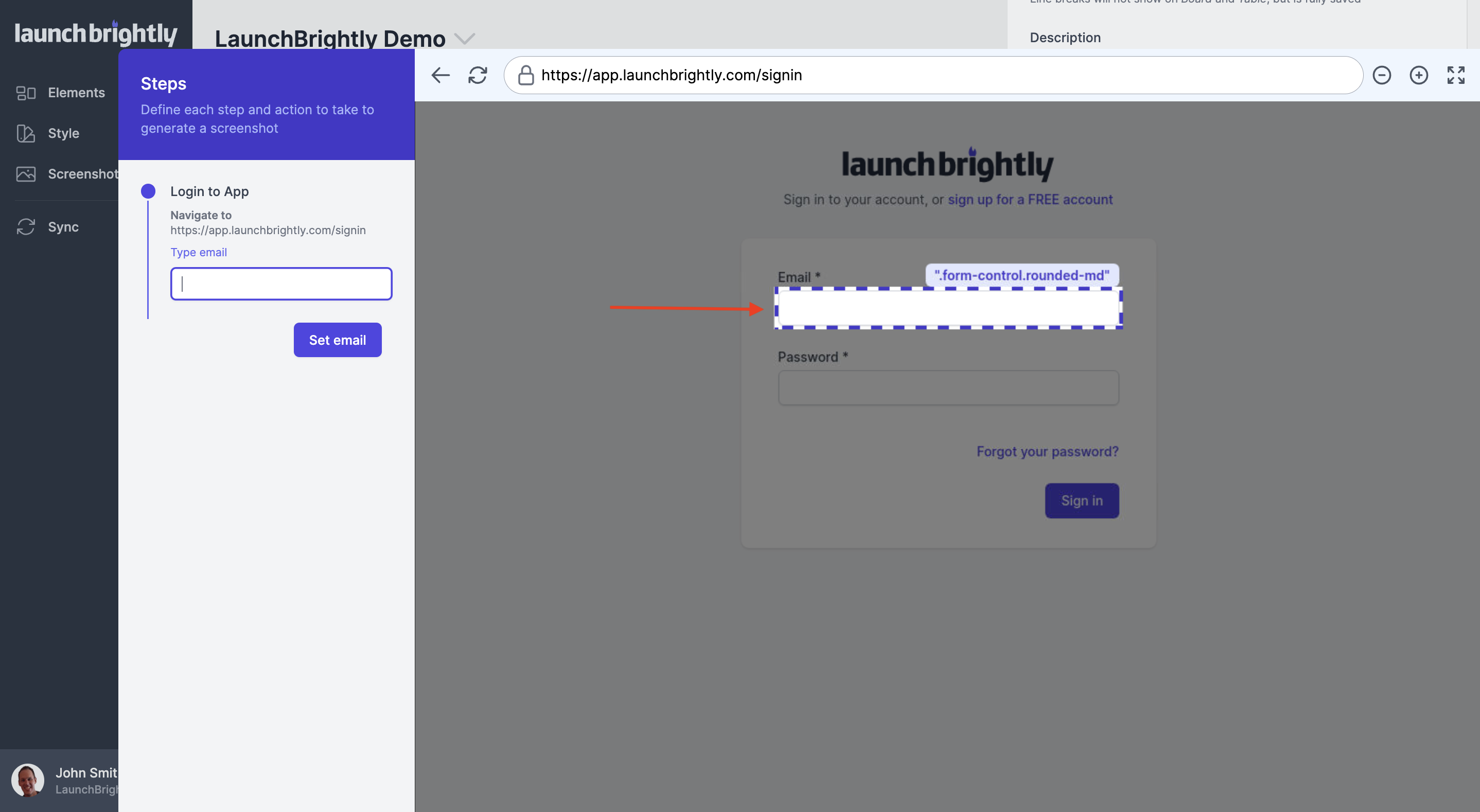

Once you set the login URL for your web application the point-and-click Login Wizard will appear allowing you to use your mouse or keypad tracker to hover over your login page and click on the Email or Username input box to select the input element for login. We use this method for two reasons:
- This approach mimics the experience your actual users would do themselves; and
- It allows you to securely provide the platform with visibility into your demo account without requiring Engineering support or additional security controls in your system as the platform is logging into the account as any ordinary user would.
After clicking on the Email or Username input box you can enter the email address associated with your demo account in the field provided on the sidebar to the left and select Set Email.

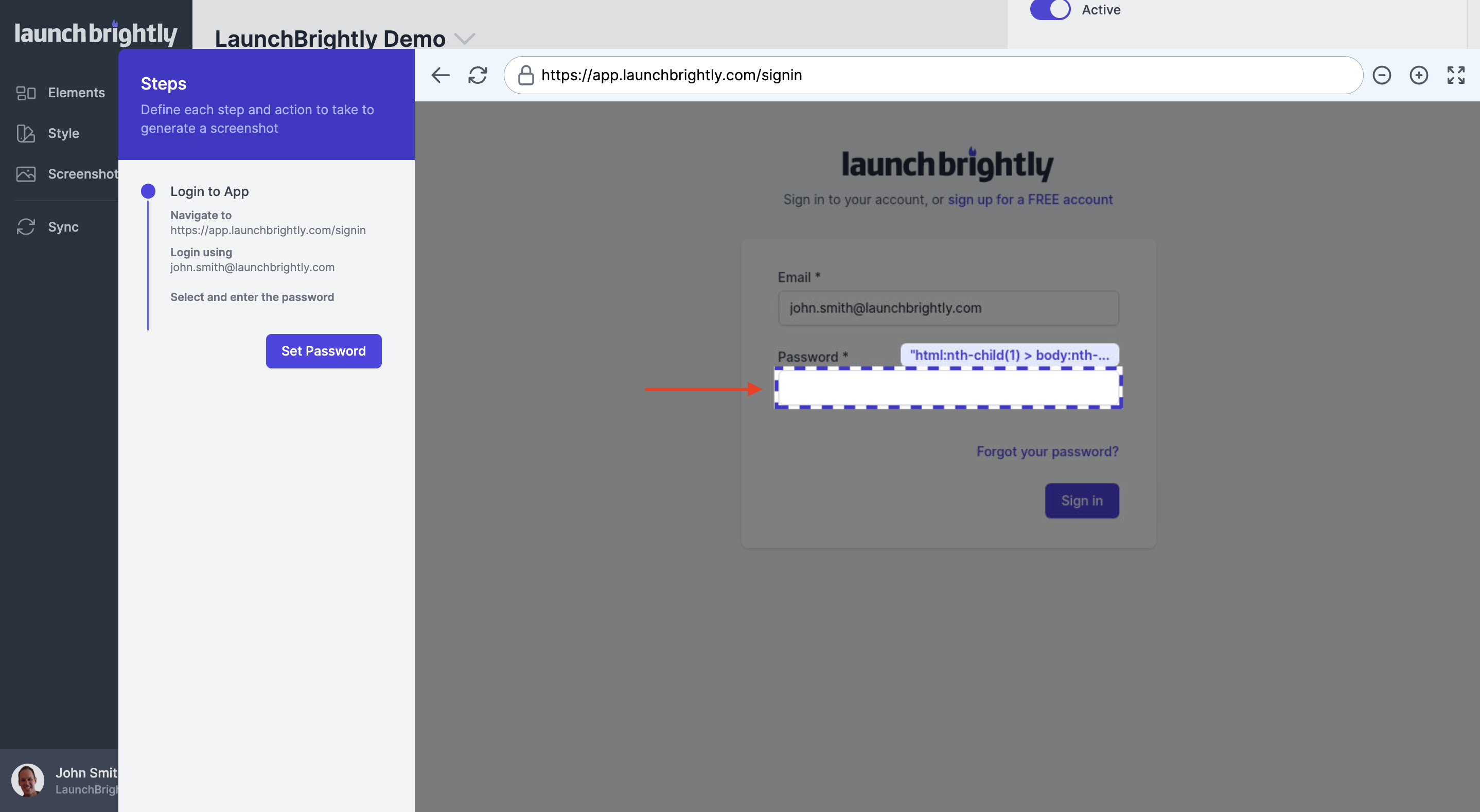

The point-and-click Login Wizard will once again appear allowing you to now hover your mouse or keypad tracker over your login page to select the input element for your Password.
After clicking on the Password input box you can enter the password for your demo account in the field provided on the sidebar to the left and select Set Password.

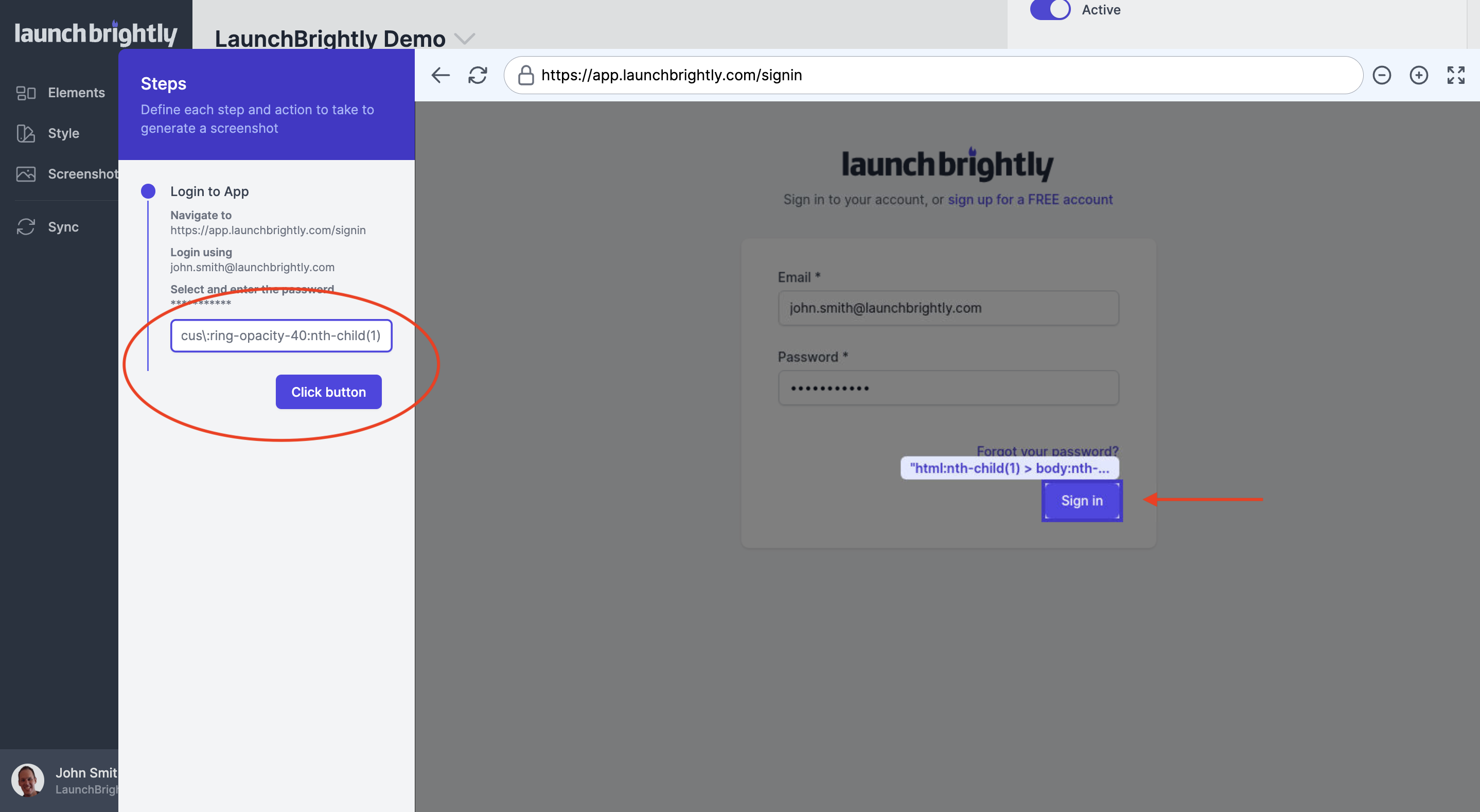

The final step is to let the automated screenshot platform know where the login button to submit your username and password is. You can do this by hovering your mouse or keypad tracker over the page and clicking the login button to automatically update the element details for your login button in the left sidebar. Select the Click button option to set these element details.

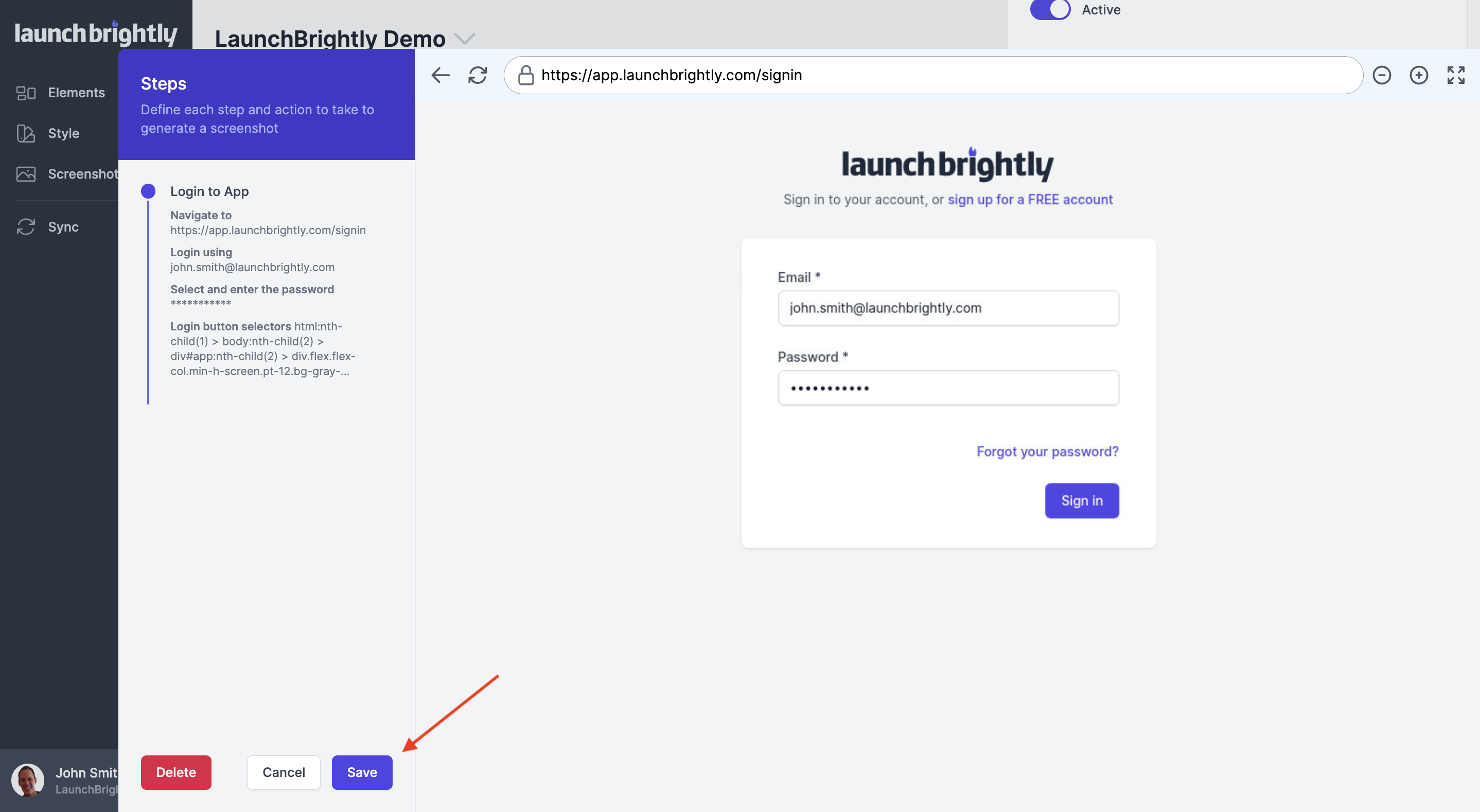

Finally, now that your login credentials have been entered and set, click Save from the bottom of the left sidebar to set the login parameters for the automated screenshot platform to access your demo account and take automated product screenshots.
